KF97減速機重量：KF97減速機重量132公斤，KF97減速機帶電機重量分別如下

KF97減速機帶0.75KW電機重量148公斤，KF97減速機帶1.1KW電機重量152公斤，KF97減速機帶1.5KW電機重量155公斤，KF97減速機帶2.2KW電機重量164公斤，KF97減速機帶3KW電機重量167公斤，KF97減速機帶4KW電機重量178公斤，KF97減速機帶5.5KW電機重量192公斤，KF97減速機帶7.5KW電機重量205公斤，KF97減速機帶11KW電機重量247公斤，KF97減速機帶15KW電機重量267公斤，KF97減速機帶18.5KW電機重量304公斤，KF97減速機帶22KW電機重量317公斤，KF97減速機帶30KW電機重量385公斤。

KF97減速機加油量：可加合成油直角減速機

KF97減速機M2方式安裝加14.7升，KF97減速機M1方式安裝加7升，KF97減速機M3方式安裝加17.3升，KF97減速機M4方式安裝加21.5升，KF97減速機M5方式安裝加15.7升，KF97減速機M6方式安裝加16.5升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

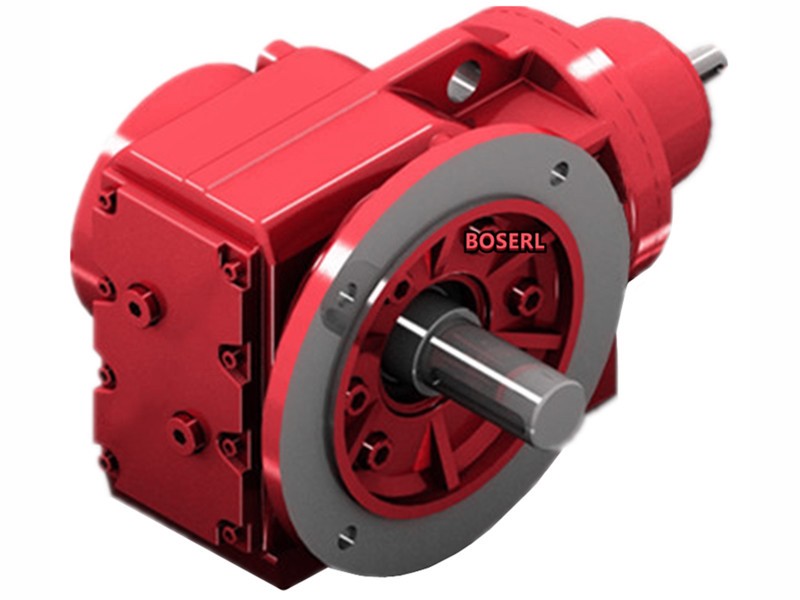

KF97減速機實物圖：圖一為KF97立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖二K97臥式方式安裝螺旋錐齒輪減速電機，圖三為KA97臥式方式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF97立式方式安裝直角空心軸螺旋錐齒輪減速機。

KF97減速機型號表示方法：

KF97減速機型號結構KF97-B22KW-4P-減速比-安裝方式-接線盒位置。

KF97減速機性能參數表結構說明：V強制冷卻風扇，RS逆止器，C防雨罩，Input Configuration代表輸入帶置，TF電機熱保護裝置，KF97、K97、KA97、KAF97減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

KF97減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1方式安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KF97減速機參數：

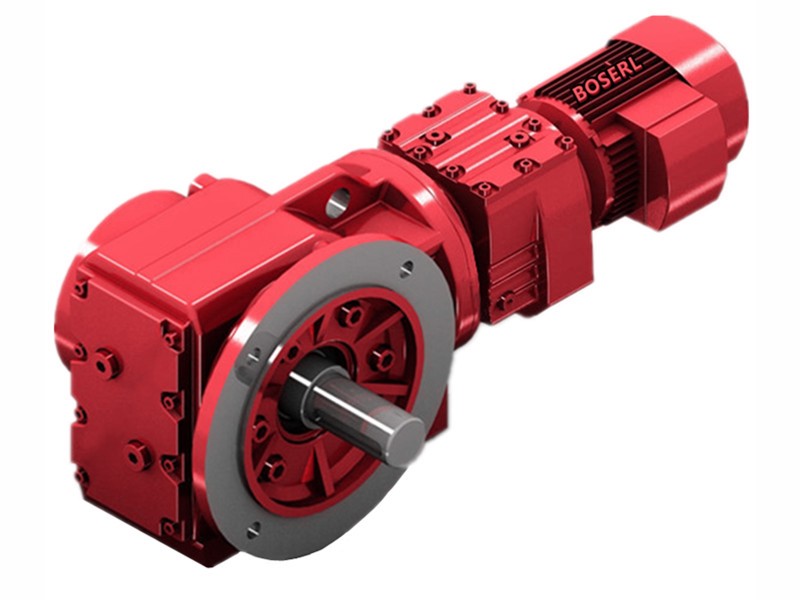

KF97減速機輸出轉數8轉，9.1轉，10轉，11轉，13轉，14轉，16轉，18轉，20轉，22轉，25轉，29轉，33轉，37轉，41轉，45轉，50轉，57轉，63轉，74轉，85轉，101轉，117轉，134轉，161轉，186轉（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）。

KF97減速機電機可帶單相、直流、變頻、剎車、防爆、伺服、交流、三相電機KF97帶KF97帶0.75KW，KF97帶1.1KW，KF97帶1.5KW，KF97帶2.2KW，KF97帶3KW，KF97帶4KW，KF97帶5.5KW，KF97帶7.5KW，KF97帶11KW，KF97帶15KW，KF97帶18.5KW，KF97帶22KW，KF97帶30KW。

KF97減速機輸出扭矩4300N.m，3890N.m，2870N.m，2660N.m，2400N.m（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）。

KF97減速機減速比176.05比，153.21比，140.28比，123.93比，105.13比，96.08比，86.52比，77.89比，70.54比，62.55比，47.93比，41.87比，38.3比，34.23比，30.82比，27.91比，24.75比，22.37比，18.96比，16.56比，13.85比，11.99比，10.41比，8.71比，7.54比。

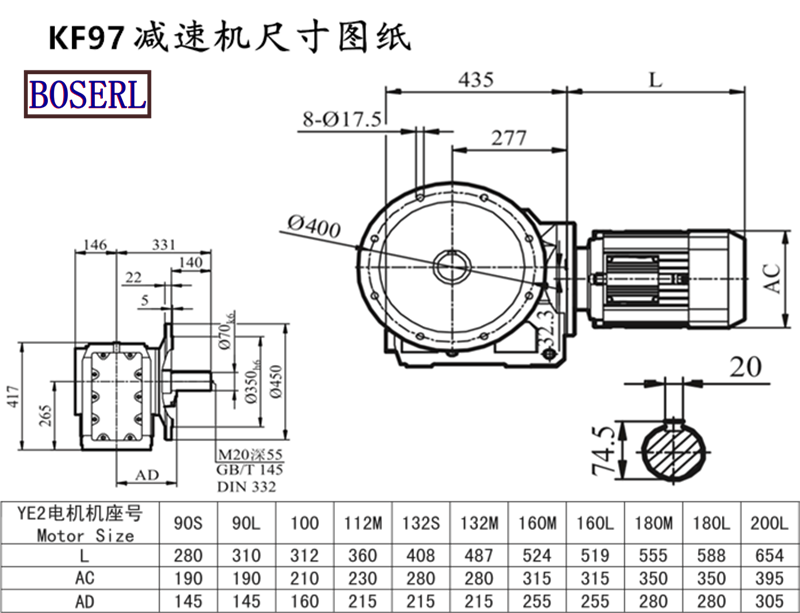

KF97減速機外形尺寸：輸出軸直徑Φ70（可定做）+鍵4.5，高417*寬447（帶輸出軸）*長435

KF97減速機型號：KF97AQA80,KF97AQA100,KF97AQA115,KF97AQA140,KF97AQA160,KF97AQA190,KF97AQH80,KF97AQH100,KF97AQH115,KF97AQH140,KF97AQH160,KF97AQH190,JRTKF97-Y1.1KW,JRTKF97-Y1.5KW,JRTKF97-Y100M4,JRTKF97-Y112M4,JRTKF97-Y11KW,JRTKF97-Y132M4,JRTKF97-Y15KW,JRTKF97-Y160M4,JRTKF97-Y18.5KW,JRTKF97-Y180M4,JRTKF97-Y2.2KW,JRTKF97-Y200M4,JRTKF97-Y22KW,JRTKF97-Y30KW,JRTKF97-Y3KW,JRTKF97-Y4KW,JRTKF97-Y5.5KW,JRTKF97-Y7.5KW,JRTKF97-Y80M4,JRTKF97-Y90M4,JRTKF97-YEJ100M4,JRTKF97-YEJ112M4,JRTKF97-YEJ132M4,JRTKF97-YEJ160M4,JRTKF97-YEJ180M4,JRTKF97-YEJ200M4,JRTKF97-YEJ80M4,JRTKF97-YEJ90M4,JRTKF97-YS100M4,JRTKF97-YS112M4,JRTKF97-YS132M4,JRTKF97-YS160M4,JRTKF97-YS180M4,JRTKF97-YS200M4,JRTKF97-YS80M4,JRTKF97-YS90M4,JRTKF97-YVP100M4,JRTKF97-YVP112M4,JRTKF97-YVP132M4,JRTKF97-YVP160M4,JRTKF97-YVP180M4,JRTKF97-YVP200M4,JRTKF97-YVP80M4,JRTKF97-YVP90M4,JRTKF97-YVPEJ100M4,JRTKF97-YVPEJ112M4,JRTKF97-YVPEJ132M4,JRTKF97-YVPEJ160M4,JRTKF97-YVPEJ180M4,JRTKF97-YVPEJ200M4,JRTKF97-YVPEJ80M4,JRTKF97-YVPEJ90M4,EWKF97-Y1.1KW,EWKF97-Y1.5KW,EWKF97-Y100M4,EWKF97-Y112M4,EWKF97-Y11KW,EWKF97-Y132M4,EWKF97-Y15KW,EWKF97-Y160M4,EWKF97-Y18.5KW,EWKF97-Y180M4,EWKF97-Y2.2KW,EWKF97-Y200M4,EWKF97-Y22KW,EWKF97-Y30KW,EWKF97-Y3KW,EWKF97-Y4KW,EWKF97-Y5.5KW,EWKF97-Y7.5KW,EWKF97-Y80M4,EWKF97-Y90M4,EWKF97-YEJ100M4,EWKF97-YEJ112M4,EWKF97-YEJ132M4,EWKF97-YEJ160M4,EWKF97-YEJ180M4,EWKF97-YEJ200M4,EWKF97-YEJ80M4,EWKF97-YEJ90M4,EWKF97-YS100M4,EWKF97-YS112M4,EWKF97-YS132M4,EWKF97-YS160M4,EWKF97-YS180M4,EWKF97-YS200M4,EWKF97-YS80M4,EWKF97-YS90M4,EWKF97-YVP100M4,EWKF97-YVP112M4,EWKF97-YVP132M4,EWKF97-YVP160M4,EWKF97-YVP180M4,EWKF97-YVP200M4,EWKF97-YVP80M4,EWKF97-YVP90M4,EWKF97-YVPEJ100M4,EWKF97-YVPEJ112M4,EWKF97-YVPEJ132M4,EWKF97-YVPEJ160M4,EWKF97-YVPEJ180M4,EWKF97-YVPEJ200M4,EWKF97-YVPEJ80M4,EWKF97-YVPEJ90M4,SLKF97-Y1.1KW,SLKF97-Y1.5KW,SLKF97-Y100M4,SLKF97-Y112M4,SLKF97-Y11KW,SLKF97-Y132M4,SLKF97-Y15KW,SLKF97-Y160M4,SLKF97-Y18.5KW,SLKF97-Y180M4,SLKF97-Y2.2KW,SLKF97-Y200M4,SLKF97-Y22KW,SLKF97-Y30KW,SLKF97-Y3KW,SLKF97-Y4KW,SLKF97-Y5.5KW,SLKF97-Y7.5KW,SLKF97-Y80M4,SLKF97-Y90M4,SLKF97-YEJ100M4,SLKF97-YEJ112M4,SLKF97-YEJ132M4,SLKF97-YEJ160M4,SLKF97-YEJ180M4,SLKF97-YEJ200M4,SLKF97-YEJ80M4,SLKF97-YEJ90M4,SLKF97-YS100M4,SLKF97-YS112M4,SLKF97-YS132M4,SLKF97-YS160M4,SLKF97-YS180M4,SLKF97-YS200M4,SLKF97-YS80M4,SLKF97-YS90M4,SLKF97-YVP100M4,SLKF97-YVP112M4,SLKF97-YVP132M4,SLKF97-YVP160M4,SLKF97-YVP180M4,SLKF97-YVP200M4,SLKF97-YVP80M4,SLKF97-YVP90M4,SLKF97-YVPEJ100M4,SLKF97-YVPEJ112M4,SLKF97-YVPEJ132M4,SLKF97-YVPEJ160M4,SLKF97-YVPEJ180M4,SLKF97-YVPEJ200M4,SLKF97-YVPEJ80M4,SLKF97-YVPEJ90M4,DSZKF97-Y1.1KW,DSZKF97-Y1.5KW,DSZKF97-Y100M4,DSZKF97-Y112M4,DSZKF97-Y11KW,DSZKF97-Y132M4,DSZKF97-Y15KW,DSZKF97-Y160M4,DSZKF97-Y18.5KW,DSZKF97-Y180M4,DSZKF97-Y2.2KW,DSZKF97-Y200M4,DSZKF97-Y22KW,DSZKF97-Y30KW,DSZKF97-Y3KW,DSZKF97-Y4KW,DSZKF97-Y5.5KW,DSZKF97-Y7.5KW,DSZKF97-Y80M4,DSZKF97-Y90M4,DSZKF97-YEJ100M4,DSZKF97-YEJ112M4,DSZKF97-YEJ132M4,DSZKF97-YEJ160M4,DSZKF97-YEJ180M4,DSZKF97-YEJ200M4,DSZKF97-YEJ80M4,DSZKF97-YEJ90M4,DSZKF97-YS100M4,DSZKF97-YS112M4,DSZKF97-YS132M4,DSZKF97-YS160M4,DSZKF97-YS180M4,DSZKF97-YS200M4,DSZKF97-YS80M4,DSZKF97-YS90M4,DSZKF97-YVP100M4,DSZKF97-YVP112M4,DSZKF97-YVP132M4,DSZKF97-YVP160M4,DSZKF97-YVP180M4,DSZKF97-YVP200M4,DSZKF97-YVP80M4,DSZKF97-YVP90M4,DSZKF97-YVPEJ100M4,DSZKF97-YVPEJ112M4,DSZKF97-YVPEJ132M4,DSZKF97-YVPEJ160M4,DSZKF97-YVPEJ180M4,DSZKF97-YVPEJ200M4,DSZKF97-YVPEJ80M4,DSZKF97-YVPEJ90M4,BKF97-Y1.1KW,BKF97-Y1.5KW,BKF97-Y100M4,BKF97-Y112M4,BKF97-Y11KW,BKF97-Y132M4,BKF97-Y15KW,BKF97-Y160M4,BKF97-Y18.5KW,BKF97-Y180M4,BKF97-Y2.2KW,BKF97-Y200M4,BKF97-Y22KW,BKF97-Y30KW,BKF97-Y3KW,BKF97-Y4KW,BKF97-Y5.5KW,BKF97-Y7.5KW,BKF97-Y80M4,BKF97-Y90M4,BKF97-YEJ100M4,BKF97-YEJ112M4,BKF97-YEJ132M4,BKF97-YEJ160M4,BKF97-YEJ180M4,BKF97-YEJ200M4,BKF97-YEJ80M4,BKF97-YEJ90M4,BKF97-YS100M4,BKF97-YS112M4,BKF97-YS132M4,BKF97-YS160M4,BKF97-YS180M4,BKF97-YS200M4,BKF97-YS80M4,BKF97-YS90M4,BKF97-YVP100M4,BKF97-YVP112M4,BKF97-YVP132M4,BKF97-YVP160M4,BKF97-YVP180M4,BKF97-YVP200M4,BKF97-YVP80M4,BKF97-YVP90M4,BKF97-YVPEJ100M4,BKF97-YVPEJ112M4,BKF97-YVPEJ132M4,BKF97-YVPEJ160M4,BKF97-YVPEJ180M4,BKF97-YVPEJ200M4,BKF97-YVPEJ80M4,BKF97-YVPEJ90M4,GKF97-Y1.1KW,GKF97-Y1.5KW,GKF97-Y100M4,GKF97-Y112M4,GKF97-Y11KW,GKF97-Y132M4,GKF97-Y15KW,GKF97-Y160M4,GKF97-Y18.5KW,GKF97-Y180M4,GKF97-Y2.2KW,GKF97-Y200M4,GKF97-Y22KW,GKF97-Y30KW,GKF97-Y3KW,GKF97-Y4KW,GKF97-Y5.5KW,GKF97-Y7.5KW,GKF97-Y80M4,GKF97-Y90M4,GKF97-YEJ100M4,GKF97-YEJ112M4,GKF97-YEJ132M4,GKF97-YEJ160M4,GKF97-YEJ180M4,GKF97-YEJ200M4,GKF97-YEJ80M4,GKF97-YEJ90M4,GKF97-YS100M4,GKF97-YS112M4,GKF97-YS132M4,GKF97-YS160M4,GKF97-YS180M4,GKF97-YS200M4,GKF97-YS80M4,GKF97-YS90M4,GKF97-YVP100M4,GKF97-YVP112M4,GKF97-YVP132M4,GKF97-YVP160M4,GKF97-YVP180M4,GKF97-YVP200M4,GKF97-YVP80M4,GKF97-YVP90M4,GKF97-YVPEJ100M4,GKF97-YVPEJ112M4,GKF97-YVPEJ132M4,GKF97-YVPEJ160M4,GKF97-YVPEJ180M4,GKF97-YVPEJ200M4,GKF97-YVPEJ80M4,GKF97-YVPEJ90M4,KCF97-Y1.1KW,KCF97-Y1.5KW,KCF97-Y100M4,KCF97-Y112M4,KCF97-Y11KW,KCF97-Y132M4,KCF97-Y15KW,KCF97-Y160M4,KCF97-Y18.5KW,KCF97-Y180M4,KCF97-Y2.2KW,KCF97-Y200M4,KCF97-Y22KW,KCF97-Y30KW,KCF97-Y3KW,KCF97-Y4KW,KCF97-Y5.5KW,KCF97-Y7.5KW,KCF97-Y80M4,KCF97-Y90M4,KCF97-YEJ100M4,KCF97-YEJ112M4,KCF97-YEJ132M4,KCF97-YEJ160M4,KCF97-YEJ180M4,KCF97-YEJ200M4,KCF97-YEJ80M4,KCF97-YEJ90M4,KCF97-YS100M4,KCF97-YS112M4,KCF97-YS132M4,KCF97-YS160M4,KCF97-YS180M4,KCF97-YS200M4,KCF97-YS80M4,KCF97-YS90M4,KCF97-YVP100M4,KCF97-YVP112M4,KCF97-YVP132M4,KCF97-YVP160M4,KCF97-YVP180M4,KCF97-YVP200M4,KCF97-YVP80M4,KCF97-YVP90M4,KCF97-YVPEJ100M4,KCF97-YVPEJ112M4,KCF97-YVPEJ132M4,KCF97-YVPEJ160M4,KCF97-YVPEJ180M4,KCF97-YVPEJ200M4,KCF97-YVPEJ80M4,KCF97-YVPEJ90M4,MTJF97-Y1.1KW,MTJF97-Y1.5KW,MTJF97-Y100M4,MTJF97-Y112M4,MTJF97-Y11KW,MTJF97-Y132M4,MTJF97-Y15KW,MTJF97-Y160M4,MTJF97-Y18.5KW,MTJF97-Y180M4,MTJF97-Y2.2KW,MTJF97-Y200M4,MTJF97-Y22KW,MTJF97-Y30KW,MTJF97-Y3KW,MTJF97-Y4KW,MTJF97-Y5.5KW,MTJF97-Y7.5KW,MTJF97-Y80M4,MTJF97-Y90M4,MTJF97-YEJ100M4,MTJF97-YEJ112M4,MTJF97-YEJ132M4,MTJF97-YEJ160M4,MTJF97-YEJ180M4,MTJF97-YEJ200M4,MTJF97-YEJ80M4,MTJF97-YEJ90M4,MTJF97-YS100M4,MTJF97-YS112M4,MTJF97-YS132M4,MTJF97-YS160M4,MTJF97-YS180M4,MTJF97-YS200M4,MTJF97-YS80M4,MTJF97-YS90M4,MTJF97-YVP100M4,MTJF97-YVP112M4,MTJF97-YVP132M4,MTJF97-YVP160M4,MTJF97-YVP180M4,MTJF97-YVP200M4,MTJF97-YVP80M4,MTJF97-YVP90M4,MTJF97-YVPEJ100M4,MTJF97-YVPEJ112M4,MTJF97-YVPEJ132M4,MTJF97-YVPEJ160M4,MTJF97-YVPEJ180M4,MTJF97-YVPEJ200M4,MTJF97-YVPEJ80M4,MTJF97-YVPEJ90M4,WXKF97-WSS1.1KW,WXKF97-WSS1.5KW,WXKF97-WSS100M4,WXKF97-WSS112M4,WXKF97-WSS11KW,WXKF97-WSS132M4,WXKF97-WSS15KW,WXKF97-WSS160M4,WXKF97-WSS18.5KW,WXKF97-WSS180M4,WXKF97-WSS2.2KW,WXKF97-WSS200M4,WXKF97-WSS22KW,WXKF97-WSS30KW,WXKF97-WSS3KW,WXKF97-WSS4KW,WXKF97-WSS5.5KW,WXKF97-WSS7.5KW,WXKF97-WSS80M4,WXKF97-WSS90M4,WXKF97-WSSB100M4,WXKF97-WSSB112M4,WXKF97-WSSB132M4,WXKF97-WSSB160M4,WXKF97-WSSB180M4,WXKF97-WSSB200M4,WXKF97-WSSB80M4,WXKF97-WSSB90M4,WXKF97-WSSVP100M4,WXKF97-WSSVP112M4,WXKF97-WSSVP132M4,WXKF97-WSSVP160M4,WXKF97-WSSVP180M4,WXKF97-WSSVP200M4,WXKF97-WSSVP80M4,WXKF97-WSSVP90M4,WXKF97-WSSVPB100M4,WXKF97-WSSVPB112M4,WXKF97-WSSVPB132M4,WXKF97-WSSVPB160M4,WXKF97-WSSVPB180M4,WXKF97-WSSVPB200M4,WXKF97-WSSVPB80M4,WXKF97-WSSVPB90M4。伺服電機減速機
