RXF107減速機加電機重量：

RXF107減速機加5.5KW電機重量161kg,RXF107減速機加7.5KW電機重量174kg,RXF107減速機加11KW電機重量216kg,RXF107減速機加15KW電機重量236kg,RXF107減速機加18.5KW電機重量273kg,RXF107減速機加22KW電機重量286kg,RXF107減速機加30KW電機重量354kg,RXF107減速機加37KW電機重量401kg,RXF107減速機加45KW電機重量4365kg。

RXF107減速機加油量：可加齒輪潤滑油

RXF107減速機M4安裝加9.3L，RXF107減速機M3安裝加11.2L，RXF107減速機M2安裝加5.7L，RXF107減速機M1安裝加3.1L，RXF107減速機M5安裝加7.2L，RXF107減速機M6安裝加7.2L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。齒輪減速機

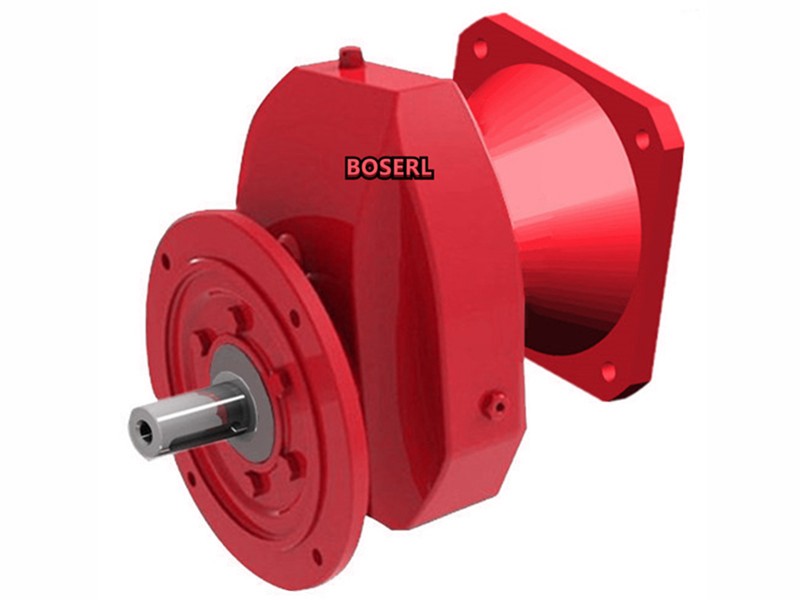

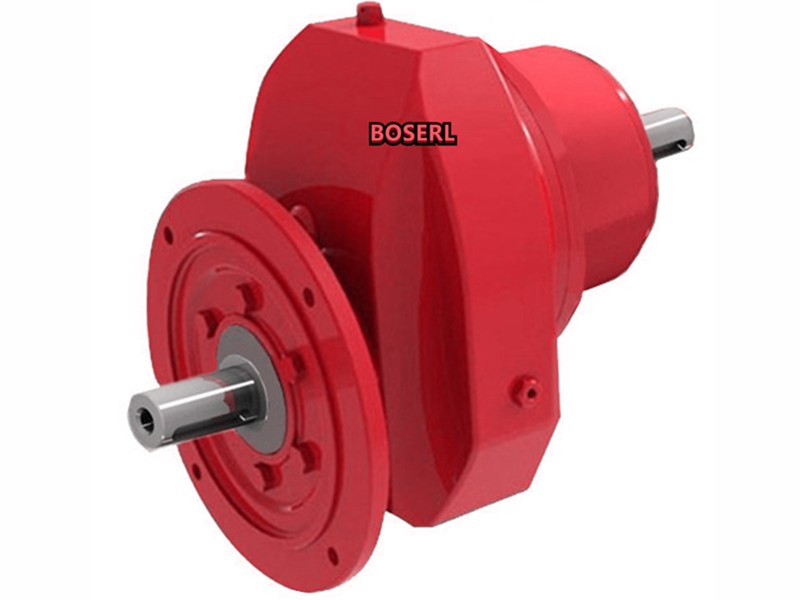

RXF107減速機實物圖：圖一為RXF107減速機不同心立式法蘭安裝，圖二為R107底腳安裝斜齒輪減速機，圖三為RF107法蘭立式安裝斜齒輪減速機，圖四為RX107減速機不同心臥式底腳安裝。

RXF107減速機型號表示方法：

RXF107減速機型號結構RXF107-B22KW-4P-減速比-安裝方式-接線盒位置。同軸減速機

RXF107減速機性能參數表結構說明：i代表減速比，Nm代表輸出扭矩，1/min代表輸出轉數，KW代表電機功率，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入加置。硬齒面減速機

RXF107減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

RXF107減速機參數：

RXF107減速機負載扭矩455N.m,460N.m,645N.m,695N.m,705N.m,765N.m,830N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大使用）

RXF107減速機電機可加交流,伺服,剎車,變頻,防爆,直流,三相,單相電機RXF107加5.5KW,RXF107加7.5KW,RXF107加11KW,RXF107加15KW,RXF107加18.5KW,RXF107加22KW,RXF107加30KW,RXF107加37KW,RXF107加45KW。

RXF107減速機輸出轉速211轉,250轉,270轉,301轉,333轉,367轉,414轉,456轉,530轉,609轉,718轉,819轉,972轉。

RXF107減速機減速比1:1.44,1:1.71,1:1.95,1:2.3,1:2.64,1:3.07,1:3.81,1:4.2,1:4.65,1:5.19,1:5.61,1:6.63,1:8.38。

RXF107減速機外觀尺寸：輸出軸直徑Φ60+鍵4（可定做），高459*寬370*長364（帶輸出軸）同軸減速機

RXF107減速機型號：RXF107AQA80,RXF107AQA100,RXF107AQA115,RXF107AQA140,RXF107AQA160,RXF107AQA190,RXF107AQH80,RXF107AQH100,RXF107AQH115,RXF107AQH140,RXF107AQH160,RXF107AQH190,RXF107AQA80,RXF107AQA100,RXF107AQA115,RXF107AQA140,RXF107AQA160,RXF107AQA190,RXF107AQH80,RXF107AQH100,RXF107AQH115,RXF107AQH140,RXF107AQH160,RXF107AQH190,JRTRXF107-Y1.5KW,JRTRXF107-Y100M4,JRTRXF107-Y112M4,JRTRXF107-Y11KW,JRTRXF107-Y132M4,JRTRXF107-Y15KW,JRTRXF107-Y160M4,JRTRXF107-Y18.5KW,JRTRXF107-Y180M4,JRTRXF107-Y2.2KW,JRTRXF107-Y200M4,JRTRXF107-Y225M4,JRTRXF107-Y22KW,JRTRXF107-Y30KW,JRTRXF107-Y37KW,JRTRXF107-Y3KW,JRTRXF107-Y45KW,JRTRXF107-Y4KW,JRTRXF107-Y5.5KW,JRTRXF107-Y7.5KW,JRTRXF107-Y90M4,JRTRXF107-YEJ100M4,JRTRXF107-YEJ112M4,JRTRXF107-YEJ132M4,JRTRXF107-YEJ160M4,JRTRXF107-YEJ180M4,JRTRXF107-YEJ200M4,JRTRXF107-YEJ225M4,JRTRXF107-YEJ90M4,JRTRXF107-YS100M4,JRTRXF107-YS112M4,JRTRXF107-YS132M4,JRTRXF107-YS160M4,JRTRXF107-YS180M4,JRTRXF107-YS200M4,JRTRXF107-YS225M4,JRTRXF107-YS90M4,JRTRXF107-YVP100M4,JRTRXF107-YVP112M4,JRTRXF107-YVP132M4,JRTRXF107-YVP160M4,JRTRXF107-YVP180M4,JRTRXF107-YVP200M4,JRTRXF107-YVP225M4,JRTRXF107-YVP90M4,JRTRXF107-YVPEJ100M4,JRTRXF107-YVPEJ112M4,JRTRXF107-YVPEJ132M4,JRTRXF107-YVPEJ160M4,JRTRXF107-YVPEJ180M4,JRTRXF107-YVPEJ200M4,JRTRXF107-YVPEJ225M4,JRTRXF107-YVPEJ90M4,EWRXF107-Y1.5KW,EWRXF107-Y100M4,EWRXF107-Y112M4,EWRXF107-Y11KW,EWRXF107-Y132M4,EWRXF107-Y15KW,EWRXF107-Y160M4,EWRXF107-Y18.5KW,EWRXF107-Y180M4,EWRXF107-Y2.2KW,EWRXF107-Y200M4,EWRXF107-Y225M4,EWRXF107-Y22KW,EWRXF107-Y30KW,EWRXF107-Y37KW,EWRXF107-Y3KW,EWRXF107-Y45KW,EWRXF107-Y4KW,EWRXF107-Y5.5KW,EWRXF107-Y7.5KW,EWRXF107-Y90M4,EWRXF107-YEJ100M4,EWRXF107-YEJ112M4,EWRXF107-YEJ132M4,EWRXF107-YEJ160M4,EWRXF107-YEJ180M4,EWRXF107-YEJ200M4,EWRXF107-YEJ225M4,EWRXF107-YEJ90M4,EWRXF107-YS100M4,EWRXF107-YS112M4,EWRXF107-YS132M4,EWRXF107-YS160M4,EWRXF107-YS180M4,EWRXF107-YS200M4,EWRXF107-YS225M4,EWRXF107-YS90M4,EWRXF107-YVP100M4,EWRXF107-YVP112M4,EWRXF107-YVP132M4,EWRXF107-YVP160M4,EWRXF107-YVP180M4,EWRXF107-YVP200M4,EWRXF107-YVP225M4,EWRXF107-YVP90M4,EWRXF107-YVPEJ100M4,EWRXF107-YVPEJ112M4,EWRXF107-YVPEJ132M4,EWRXF107-YVPEJ160M4,EWRXF107-YVPEJ180M4,EWRXF107-YVPEJ200M4,EWRXF107-YVPEJ225M4,EWRXF107-YVPEJ90M4,SLRXF107-Y1.5KW,SLRXF107-Y100M4,SLRXF107-Y112M4,SLRXF107-Y11KW,SLRXF107-Y132M4,SLRXF107-Y15KW,SLRXF107-Y160M4,SLRXF107-Y18.5KW,SLRXF107-Y180M4,SLRXF107-Y2.2KW,SLRXF107-Y200M4,SLRXF107-Y225M4,SLRXF107-Y22KW,SLRXF107-Y30KW,SLRXF107-Y37KW,SLRXF107-Y3KW,SLRXF107-Y45KW,SLRXF107-Y4KW,SLRXF107-Y5.5KW,SLRXF107-Y7.5KW,SLRXF107-Y90M4,SLRXF107-YEJ100M4,SLRXF107-YEJ112M4,SLRXF107-YEJ132M4,SLRXF107-YEJ160M4,SLRXF107-YEJ180M4,SLRXF107-YEJ200M4,SLRXF107-YEJ225M4,SLRXF107-YEJ90M4,SLRXF107-YS100M4,SLRXF107-YS112M4,SLRXF107-YS132M4,SLRXF107-YS160M4,SLRXF107-YS180M4,SLRXF107-YS200M4,SLRXF107-YS225M4,SLRXF107-YS90M4,SLRXF107-YVP100M4,SLRXF107-YVP112M4,SLRXF107-YVP132M4,SLRXF107-YVP160M4,SLRXF107-YVP180M4,SLRXF107-YVP200M4,SLRXF107-YVP225M4,SLRXF107-YVP90M4,SLRXF107-YVPEJ100M4,SLRXF107-YVPEJ112M4,SLRXF107-YVPEJ132M4,SLRXF107-YVPEJ160M4,SLRXF107-YVPEJ180M4,SLRXF107-YVPEJ200M4,SLRXF107-YVPEJ225M4,SLRXF107-YVPEJ90M4,DSZRXF107-Y1.5KW,DSZRXF107-Y100M4,DSZRXF107-Y112M4,DSZRXF107-Y11KW,DSZRXF107-Y132M4,DSZRXF107-Y15KW,DSZRXF107-Y160M4,DSZRXF107-Y18.5KW,DSZRXF107-Y180M4,DSZRXF107-Y2.2KW,DSZRXF107-Y200M4,DSZRXF107-Y225M4,DSZRXF107-Y22KW,DSZRXF107-Y30KW,DSZRXF107-Y37KW,DSZRXF107-Y3KW,DSZRXF107-Y45KW,DSZRXF107-Y4KW,DSZRXF107-Y5.5KW,DSZRXF107-Y7.5KW,DSZRXF107-Y90M4,DSZRXF107-YEJ100M4,DSZRXF107-YEJ112M4,DSZRXF107-YEJ132M4,DSZRXF107-YEJ160M4,DSZRXF107-YEJ180M4,DSZRXF107-YEJ200M4,DSZRXF107-YEJ225M4,DSZRXF107-YEJ90M4,DSZRXF107-YS100M4,DSZRXF107-YS112M4,DSZRXF107-YS132M4,DSZRXF107-YS160M4,DSZRXF107-YS180M4,DSZRXF107-YS200M4,DSZRXF107-YS225M4,DSZRXF107-YS90M4,DSZRXF107-YVP100M4,DSZRXF107-YVP112M4,DSZRXF107-YVP132M4,DSZRXF107-YVP160M4,DSZRXF107-YVP180M4,DSZRXF107-YVP200M4,DSZRXF107-YVP225M4,DSZRXF107-YVP90M4,DSZRXF107-YVPEJ100M4,DSZRXF107-YVPEJ112M4,DSZRXF107-YVPEJ132M4,DSZRXF107-YVPEJ160M4,DSZRXF107-YVPEJ180M4,DSZRXF107-YVPEJ200M4,DSZRXF107-YVPEJ225M4,DSZRXF107-YVPEJ90M4,BRXF107-Y1.5KW,BRXF107-Y100M4,BRXF107-Y112M4,BRXF107-Y11KW,BRXF107-Y132M4,BRXF107-Y15KW,BRXF107-Y160M4,BRXF107-Y18.5KW,BRXF107-Y180M4,BRXF107-Y2.2KW,BRXF107-Y200M4,BRXF107-Y225M4,BRXF107-Y22KW,BRXF107-Y30KW,BRXF107-Y37KW,BRXF107-Y3KW,BRXF107-Y45KW,BRXF107-Y4KW,BRXF107-Y5.5KW,BRXF107-Y7.5KW,BRXF107-Y90M4,BRXF107-YEJ100M4,BRXF107-YEJ112M4,BRXF107-YEJ132M4,BRXF107-YEJ160M4,BRXF107-YEJ180M4,BRXF107-YEJ200M4,BRXF107-YEJ225M4,BRXF107-YEJ90M4,BRXF107-YS100M4,BRXF107-YS112M4,BRXF107-YS132M4,BRXF107-YS160M4,BRXF107-YS180M4,BRXF107-YS200M4,BRXF107-YS225M4,BRXF107-YS90M4,BRXF107-YVP100M4,BRXF107-YVP112M4,BRXF107-YVP132M4,BRXF107-YVP160M4,BRXF107-YVP180M4,BRXF107-YVP200M4,BRXF107-YVP225M4,BRXF107-YVP90M4,BRXF107-YVPEJ100M4,BRXF107-YVPEJ112M4,BRXF107-YVPEJ132M4,BRXF107-YVPEJ160M4,BRXF107-YVPEJ180M4,BRXF107-YVPEJ200M4,BRXF107-YVPEJ225M4,BRXF107-YVPEJ90M4,GRXF107-Y1.5KW,GRXF107-Y100M4,GRXF107-Y112M4,GRXF107-Y11KW,GRXF107-Y132M4,GRXF107-Y15KW,GRXF107-Y160M4,GRXF107-Y18.5KW,GRXF107-Y180M4,GRXF107-Y2.2KW,GRXF107-Y200M4,GRXF107-Y225M4,GRXF107-Y22KW,GRXF107-Y30KW,GRXF107-Y37KW,GRXF107-Y3KW,GRXF107-Y45KW,GRXF107-Y4KW,GRXF107-Y5.5KW,GRXF107-Y7.5KW,GRXF107-Y90M4,GRXF107-YEJ100M4,GRXF107-YEJ112M4,GRXF107-YEJ132M4,GRXF107-YEJ160M4,GRXF107-YEJ180M4,GRXF107-YEJ200M4,GRXF107-YEJ225M4,GRXF107-YEJ90M4,GRXF107-YS100M4,GRXF107-YS112M4,GRXF107-YS132M4,GRXF107-YS160M4,GRXF107-YS180M4,GRXF107-YS200M4,GRXF107-YS225M4,GRXF107-YS90M4,GRXF107-YVP100M4,GRXF107-YVP112M4,GRXF107-YVP132M4,GRXF107-YVP160M4,GRXF107-YVP180M4,GRXF107-YVP200M4,GRXF107-YVP225M4,GRXF107-YVP90M4,GRXF107-YVPEJ100M4,GRXF107-YVPEJ112M4,GRXF107-YVPEJ132M4,GRXF107-YVPEJ160M4,GRXF107-YVPEJ180M4,GRXF107-YVPEJ200M4,GRXF107-YVPEJ225M4,GRXF107-YVPEJ90M4,RCXF107-Y1.5KW,RCXF107-Y100M4,RCXF107-Y112M4,RCXF107-Y11KW,RCXF107-Y132M4,RCXF107-Y15KW,RCXF107-Y160M4,RCXF107-Y18.5KW,RCXF107-Y180M4,RCXF107-Y2.2KW,RCXF107-Y200M4,RCXF107-Y225M4,RCXF107-Y22KW,RCXF107-Y30KW,RCXF107-Y37KW,RCXF107-Y3KW,RCXF107-Y45KW,RCXF107-Y4KW,RCXF107-Y5.5KW,RCXF107-Y7.5KW,RCXF107-Y90M4,RCXF107-YEJ100M4,RCXF107-YEJ112M4,RCXF107-YEJ132M4,RCXF107-YEJ160M4,RCXF107-YEJ180M4,RCXF107-YEJ200M4,RCXF107-YEJ225M4,RCXF107-YEJ90M4,RCXF107-YS100M4,RCXF107-YS112M4,RCXF107-YS132M4,RCXF107-YS160M4,RCXF107-YS180M4,RCXF107-YS200M4,RCXF107-YS225M4,RCXF107-YS90M4,RCXF107-YVP100M4,RCXF107-YVP112M4,RCXF107-YVP132M4,RCXF107-YVP160M4,RCXF107-YVP180M4,RCXF107-YVP200M4,RCXF107-YVP225M4,RCXF107-YVP90M4,RCXF107-YVPEJ100M4,RCXF107-YVPEJ112M4,RCXF107-YVPEJ132M4,RCXF107-YVPEJ160M4,RCXF107-YVPEJ180M4,RCXF107-YVPEJ200M4,RCXF107-YVPEJ225M4,RCXF107-YVPEJ90M4,MTDXF107-Y1.5KW,MTDXF107-Y100M4,MTDXF107-Y112M4,MTDXF107-Y11KW,MTDXF107-Y132M4,MTDXF107-Y15KW,MTDXF107-Y160M4,MTDXF107-Y18.5KW,MTDXF107-Y180M4,MTDXF107-Y2.2KW,MTDXF107-Y200M4,MTDXF107-Y225M4,MTDXF107-Y22KW,MTDXF107-Y30KW,MTDXF107-Y37KW,MTDXF107-Y3KW,MTDXF107-Y45KW,MTDXF107-Y4KW,MTDXF107-Y5.5KW,MTDXF107-Y7.5KW,MTDXF107-Y90M4,MTDXF107-YEJ100M4,MTDXF107-YEJ112M4,MTDXF107-YEJ132M4,MTDXF107-YEJ160M4,MTDXF107-YEJ180M4,MTDXF107-YEJ200M4,MTDXF107-YEJ225M4,MTDXF107-YEJ90M4,MTDXF107-YS100M4,MTDXF107-YS112M4,MTDXF107-YS132M4,MTDXF107-YS160M4,MTDXF107-YS180M4,MTDXF107-YS200M4,MTDXF107-YS225M4,MTDXF107-YS90M4,MTDXF107-YVP100M4,MTDXF107-YVP112M4,MTDXF107-YVP132M4,MTDXF107-YVP160M4,MTDXF107-YVP180M4,MTDXF107-YVP200M4,MTDXF107-YVP225M4,MTDXF107-YVP90M4,MTDXF107-YVPEJ100M4,MTDXF107-YVPEJ112M4,MTDXF107-YVPEJ132M4,MTDXF107-YVPEJ160M4,MTDXF107-YVPEJ180M4,MTDXF107-YVPEJ200M4,MTDXF107-YVPEJ225M4,MTDXF107-YVPEJ90M4,WXRXF107-WSS1.5KW,WXRXF107-WSS100M4,WXRXF107-WSS112M4,WXRXF107-WSS11KW,WXRXF107-WSS132M4,WXRXF107-WSS15KW,WXRXF107-WSS160M4,WXRXF107-WSS18.5KW,WXRXF107-WSS180M4,WXRXF107-WSS2.2KW,WXRXF107-WSS200M4,WXRXF107-WSS225M4,WXRXF107-WSS22KW,WXRXF107-WSS30KW,WXRXF107-WSS37KW,WXRXF107-WSS3KW,WXRXF107-WSS45KW,WXRXF107-WSS4KW,WXRXF107-WSS5.5KW,WXRXF107-WSS7.5KW,WXRXF107-WSS90M4,WXRXF107-WSSB100M4,WXRXF107-WSSB112M4,WXRXF107-WSSB132M4,WXRXF107-WSSB160M4,WXRXF107-WSSB180M4,WXRXF107-WSSB200M4,WXRXF107-WSSB225M4,WXRXF107-WSSB90M4,WXRXF107-WSSVP100M4,WXRXF107-WSSVP112M4,WXRXF107-WSSVP132M4,WXRXF107-WSSVP160M4,WXRXF107-WSSVP180M4,WXRXF107-WSSVP200M4,WXRXF107-WSSVP225M4,WXRXF107-WSSVP90M4,WXRXF107-WSSVPB100M4,WXRXF107-WSSVPB112M4,WXRXF107-WSSVPB132M4,WXRXF107-WSSVPB160M4,WXRXF107-WSSVPB180M4,WXRXF107-WSSVPB200M4,WXRXF107-WSSVPB225M4,WXRXF107-WSSVPB90M4。

RXF107減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.jiaoyids.cn/product/list-rxfxiliejiansuji-cn.html

推薦類似型號：R107減速機
